Anjani Industries - Jet Dying machine

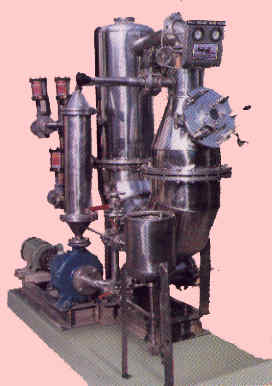

"U" TYPE SAMPLE JET DYEING MACHINE
	^{Quality of material}	^{S.S. 316 3mm th.}
	^H.P.required	^{5 HP.}
	^{Space required}	^{Length : 3000mm} ^{Width : 2000mm} ^{Height : 2000mm}
	^{Process Time}	^{2 to 2.5 HRS.}
	^{Steam required}	^50Kg./Batch.
	^{Liquor ratio}	^{1:1.5 to 1:2}
	^{Fabric load}	^10Kg./Batch
	^Pump	^{KSB make sealless or mechanical seal.}
	^{Electric control panel}	^{Laxmi' make contactor & relay with 'EEC' or 'Semitronic' make programmer.}
	^{Heat exchanger}	^{20 tubes 650 mm long.}
	^{Special attraction}	^{Full S.S.(stand, panel or flanges)}
	^{Shall dia}	^400mm

"U" TYPE JET DYEING MACHINE
Capacity of machine	150 Kg./.Batch
Pump specification	Discharge 50 M3/hr. H-40 mfr. or as per requirement
Pump motor	1OH.P.X2900RPM or as per requirement
Real motor	0.5 H.P. REMI make
Piling motor	0.5H.P.REMI make
Liquor ratio	1:2
Heating capacity	6^oC / Min. on steam heating
Maximum operating temp	140^oC
Over all dimension	Length : 3.7 Mtr. Width : 2.2 Mtr. Height :2.7Mtr.
Fabric speed	3OO-50OMtr./Min.
Total power consumption	8.25KW.
Nozzle pressure	4 Kg. / M2
Programmer	'Semitronic, Pejawar' or 'EEC' make
